– HDBaseT Recommended cable
– 5.7mm diameter low profile cable
– 24AWG Oxygen-free Copper conductors & U/UTP construction for termination ease, suitable for both crimp or IDC style terminations
– Metre-marked
– Available in 6 colours (black, blue, green, white, yellow & purple)
– Available in CPR Dca rated LSZH or UL444 CM PVC jacket variants
– Conveniently packaged in a Reel-in-Box delivery system that’s easy to identify in a van or on-site

CONSTRUCTION

Conductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]
Insulation: Polyethylene, 0.97 +/-0.05 mm
Twisting: 4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
Outer Diameter: 5.7 +/-0.3 mm

MECHANICAL

Bend Radius: without load ≥ 22.8mm /0.89”, with load ≥ 45.6mm /1.79”
Temperature Range: During Operation: -20°C to 60ºC During Installation:  0°C to 50ºC

ELECTRICAL

DC Resistance: ≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance: ≤ 5% at 20ºC
Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
Mutual Capacitance: ≤ 5.6 nF / 100m at 1kHz
Capacitance Unbalance (Pair to Ground): ≤ 330 pF / 100m at 1kHz
Nominal Velocity of Propagation: nom. 67% c
Test Voltage: 1kV DC / 1 min

MATERIALS/MARKING & FIRE RATING

LSZH

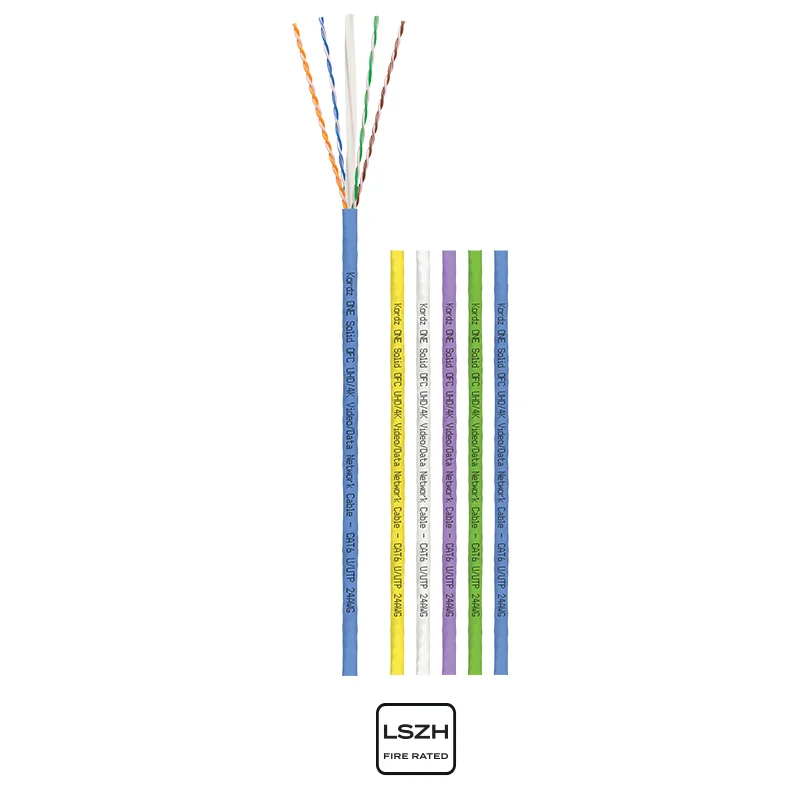

Kordz ONE Solid OFC UHD/4K Video/Data Network Cable. ETL VERIFIED TIA-568-C.2 (3081133CRT-009) LSZH CAT6 U/UTP 24AWG. IEC 60332-1

FRPVC
Kordz ONE Solid OFC UHD/4K Video/Data Network Cable. ETL VERIFIED TIA-568-C.2 (2042398CRT-004) CM CAT6 U/UTP 24AWG. UL 444 CM

Blue: RAL 5015
Green: RAL 6018
Purple: RAL 4005
White: RAL 9003
Yellow: RAL 1018

PACKAGING

Roll Size: 305m / 1000ft – metre marked
Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
Volume: 0.03m2 / 1.05 cu. ft.
Gross Weight: 13.8kg / 30.4lbs
