Free USB Bandwidth Guide for AV Pros
Understand exactly how USB-C bandwidth is shared between data and video, in one clear, printable page.
Avoid guesswork in your next install. This quick-reference chart helps you spec the right USB-C solution every time:
✔ Compare USB 10, 20, 40 Gbps bandwidth configurations
✔ Understand DisplayPort Alt Mode and shared capacity
✔ Spot limitations before they affect performance
✔ Perfect for AV, IT, and infrastructure design teams
Why This Guide Matters
USB-C is powerful — but it’s not magic.
Mixing data and video over a single cable sounds great… until your 4K monitors glitch or your file transfers lag.

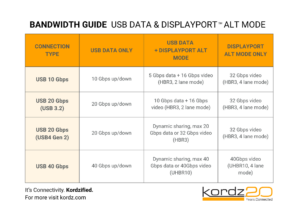

This one-page guide shows how bandwidth is actually allocated.
